Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wision
  • Model Number: WS-C8R31H
  • Type: IP Camera
  • Style: Dome Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • Name: 3mp WDR IR Dome Camera
  • Model: WS-C8R31H
  • System: onvif2.0
  • Optional: POE
  • Protection level: IP66
  • Function: WDR

Packaging & Delivery

Packaging Details carton box packaged
Delivery Time 7-30 days after payment received
IP66 3.0MP WDR IP camera, 1080P FULL HD IP outdoor Camera with POE, ICR security camera, network camera, full hd ip camera

Product Description
Features:
  • * 3MP,Max. resolution up to 2048×1536,excellent WDR and low illumination effect,Real-time FULL HD 1080P;
  • * H.264/MJPEG Compression, Multi-streaming, Mobile Monitoring, Multi Smartphone Operating System (Android, iPhone), Supporting 1600*1200 (4:3 )Mode;
  • * Support Wision Video Publishing System; Support LAN and Internet(ADSL , Cable Modem);
  • * Multi Users Browsing simultaneously; System Online Upgrade; Abnormal Auto-Recovery, Network Interrupt Auto-Connected;
  • * Local and Network Storage,Built-in SD Card Slot, Multiple Network Storage Protocols Supported;
  • * Watching-dog, Motion detection (Area, Sensitivity Selectable) and Sensor Alarm;
  • * Two-way voice intercom and broadcast, Alarm I/O, RS485 Interface Supported;
  • * Auto White Balance, Auto Gain; Analog Video Output supported;
  • * CDS Light Control, IR-CUT Dual Filter Auto Switching and Delay Technology, True D/N Surveillance;
  • * Built-in Long Life and Efficient Infrared Array Components,Non-spherical Lens, Sharp Clear Image W/O Distorting;
  • Three-axis Adjustment Function, Convenient for Engineering Installation.
Applicable Scene:
Apply to hotels, supermarkets, offices, corridors, stairs and other ultra-high-definition quality picture, wide dynamic range and low illumination indoor monitoring sites.

Product ID:
WS-C8R31H-04(4mm Lens), WS-C8R31H-06(6mm Lens)

Product dimension:





Model

WS-C8R31H-04

WS-C8R31H-06

Camera

Processor

TI single chip SOC:built-in (ARM9 + DSP) and high-speed video processor

Image Sensor

1/3", 3.1M Pixels, Progressive, WDR, Low illumination CMOS

Min.Lux

Color:0.1Lux/F1.2, B/W:0.01Lux/F1.2

WDR>100dB

SNR

>50dB

AutoElectronic Shutter

1/5 sec to 1/50,000 sec

Lens4mm6mm
Day&NightElectronic or ICR
Compression StandardVideo CompressionH.264/MJPEG
Bit Rate64Kbps-12Mbps,user-defined

Audio Compression

G.711


Max. Size

2048×1536

Resolution& Frame Rate

20fps(2048×1536)

30fps(1600×1200)

30fps(1920×1080)

30fps(1280×720)

Character Superimposition

Support Channel Name, Date and time Information superimposition, and users can adjust the location of superimposition

Image Setting

BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate, adjustablethough Client software or IE

Function

Storage——
Intelligent AlarmMotion Detection,Interruption Network,Alarm I/O

Network Protocol

HTTP,DHCP,UDP,RTP/RTSP,ANNP(NTP,FTP)

Access Protocol

ONVIF,PSIA

General Functions

Anti-flash, Multi-stream, Password-protected, OSD Technology

Interface

Audio Input——
Audio Output——

Network Interface

RJ45-10/100Base-TX FAST Ethernet,RS-485

Alarm Input

——

Alarm Output

——

Others

Operating Temp.&Humidity

-10°C~+50°C 30%~90%RH

Power Supply

DC12V/5A

Power Consumption

Max. 10W

Size(mm)

123mm(L)×123mm(W)×97mm(H)

Installation

Ceiling

Weight

About 625g

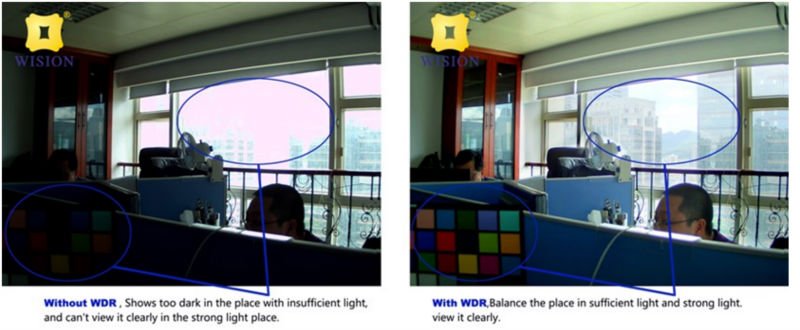

WDR ON & OFF at day time:


WDR OFF at night:

WDR ON at night:


Company Information

Production line:

Testing:

OEM service--you can set your own logo here:

Outdoor:

Indoor--meeting room:

Indoor- show room:

We have rich experience to accept customers’ OEM order! We have serviced well for many big customers from USA, Germany,Turkey,Australia, Dubai, Brasil, Paraguay, France, India, Colombia, Mexico, Etc.

Our IP cameras compatible with: ONVIF2.0, PSIA, milestone, nuuo, synology, Axxonsoft (ITV), Qnap, exacq, Dahua, Hikivision, etc.

 Our products:

²  1mp/1.3mp/2mp/3mp/5mp IP Cameras(POE, ICR, two-way audio, alarm, auto iris, 32G SD-card slot optional);

²  4ch/8ch/9ch/16ch/32ch/64ch NVRs;

²  4ch/8ch/16ch Hybrid DVR;

"High Quality, Competitive Price, On-Time Delivery, Good Sale and After-Sale Service"


We sincerely welcome agents, distributors and importers from all over the world to join us. We warmly welcome new and old customers and partners to cooperate with us.

Price: We are professional IP cameras and NVRs manufacturer, so we can provide the goods with competitive price.

Quality: We consider quality as our life, and we have strict quality control from the materials to the finished products. Before shipment, we will also heavily test the goods for more than three times.

You don’t need the cheaptest, you just need the most suitable!


We have many models of IP cameras and NVRs, Good Quality + Good Price + Quick delivery.

 Tips: Any inquiry, pls feel free to contact with us at any time!
