Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wision
  • Model Number: WS-B8P31
  • Type: Digital Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • 5 megapixel IP Camera Name: 5 megapixel IP IR bullet camera
  • 5 megapixel IP Camera Model: WS-B8P31
  • 5 megapixel IP Camera System: onvif2.0
  • 5 megapixel IP Camera Optional: POE
  • 5 megapixel IP Camera Color: white or blue

Packaging & Delivery

Packaging Details carton box packaged
Delivery Time 1-15 days after payment received
good price 5 megapixel IP Camera waterproof cctv camera , full HD 1080P IR Bullet camera, POE IP camera, ONVIF, network camera

Application Scene:

Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality, IR are required.

Ordering Model:

WS-B8P31-06(6mm lens),WS-B8P31-08(8mm lens),WS-B8P31-16(16mm lens)

*  5MP, up to 2560* 1920 resolution; excellent  low illumination effect; output complete real-time FULL HD1080P images
* High Sensitivity,High S/N Ratio 1/2.5″Low Illumination Progressive CMOS
* TI(Texas Instrument) SOC Chipset,Built-in (ARM9+DSP)and High Speed Video Processor
* Built-in Long Life and Efficient Infrared Array Components
* Non-spherical Lens, Sharp Clear Image W/O Distorting
* CDS Light Control, IR-CUT Dual Filter Auto Switching and Delay Technology, Ture
  D/N Surveillance
* H.264 Compression,Tripple Streaming,Mobile Surveillance,Multi Smart Phone Operating
  System Supported
* Built-in Web Server, Standard Internet Explorer Real Time Borwsing and Configuration
  Setting Management
* Maximum Support 10 Users Browsing
* 10M/100M Adaptive Ethernet
* Network Storage, Multi Network Storage Protocol Supported
* RS485 connector,Transparent Transmission Protocol
* Abnormal Auto Recovery, Network Interrupt Auto Connetction
* Remote Online F/W Upgrade
CameraProcessorTI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor1/2.5” 5M Pixels, Progressive CMOS
Min.LuxColor: 1Lux/F1.2; B/W:0.05Lux/F1.2 (IR OFF), 0Lux/F1.2 (IR ON)
Auto Iris / Lens6mm/ 8mm / 16mm /; infared lamp with light distance 25m
Day&NightElectronic or ICR
CompressionVideo CompressionH.264/MJPEG
Bit Rate64 Kbps-12Mbps
Audio CompressionG.711
ImageMax.Size2560 x 1920
Resolution& Frame Rate 10fps(2560*1920), 15fps(2048 x 1536), 30fps(1600 x 1200), 30fps(1920 x 1080P)
30fps(1280 x 720)
OSD ControlChannel Name, Date and time Information Superimposition supported,
Location adjustable
Image SettingBLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Intelligent AlarmMotion detection,Interruption Network, I/O Alarm
Access ProtocolStandard ONVIF,PSIA
General FunctionsAnti-flash, Multi-stream, Password protected, OSD Technology
InterfaceAudio Input1ch (optional)
Audio Output1ch (optional)
Network InterfaceRJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input1ch (optional)
Alarm Output1ch (optional)
Video Output (analog)
Temperature&HumidityHeater starts working when temperature is below 5 °C; 30%-90% RH
Power SupplyDC12V / 1.5A
Power ConsumptionMax.20W
Installment MethodsComes with mounting bracket
Weightabout 940g


Product dimension

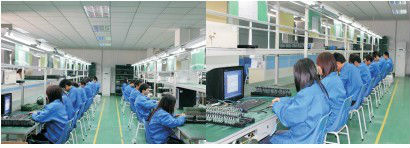

  Production line:

OEM service--you can set your own logo here:


Indoor--meeting room:

Indoor- show room:



We have rich experience to accept customers’ OEM order! We have serviced well for many big customers from USA, Germany,Turkey,Australia, Dubai, Brasil, Paraguay, France, India, Colombia, Mexico, Etc.


Our IP cameras compatible with: ONVIF2.0, PSIA, milestone, nuuo, synology, Axxonsoft (ITV), Qnap, exacq, Dahua, Hikivision, etc.


We sincerely welcome agents, distributors and importers from all over the world to join us. We warmly welcome new and old customers and partners to cooperate with us.


You don’t need the cheaptest, you just need the most suitable!

We have many models of IP cameras and NVRs, as Wision is manufacturer.


High Quality + Competitive Price + Quick delivery+ Good Sale & After-Sale Service.


 Tips: Any inquiry, pls feel free to contact with us at any time!
