Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wision
  • Model Number: WS-ND1003E/Y2
  • Type: IP Camera
  • Style: Mini Camera
  • Sensor: CMOS
  • Technology: Pan/Tilt
  • Special Features: Wireless
  • Item Name: Wifi IP Camera
  • System: Linux
  • Image Sensor: 1/4"1MP CMOS
  • Resolution: 1280x720
  • Lens: 2.1mm wide angle lens
  • Day&night vision: IR-Cut
  • Compression: H.264
  • Power Supply: DC5V 2A
  • Wifi: Support
  • Function: Motion Detect, Recording, Auto alarm, etc

Packaging & Delivery

Packaging Details carton box packaged outside
Delivery Time 3-7 days after payment received

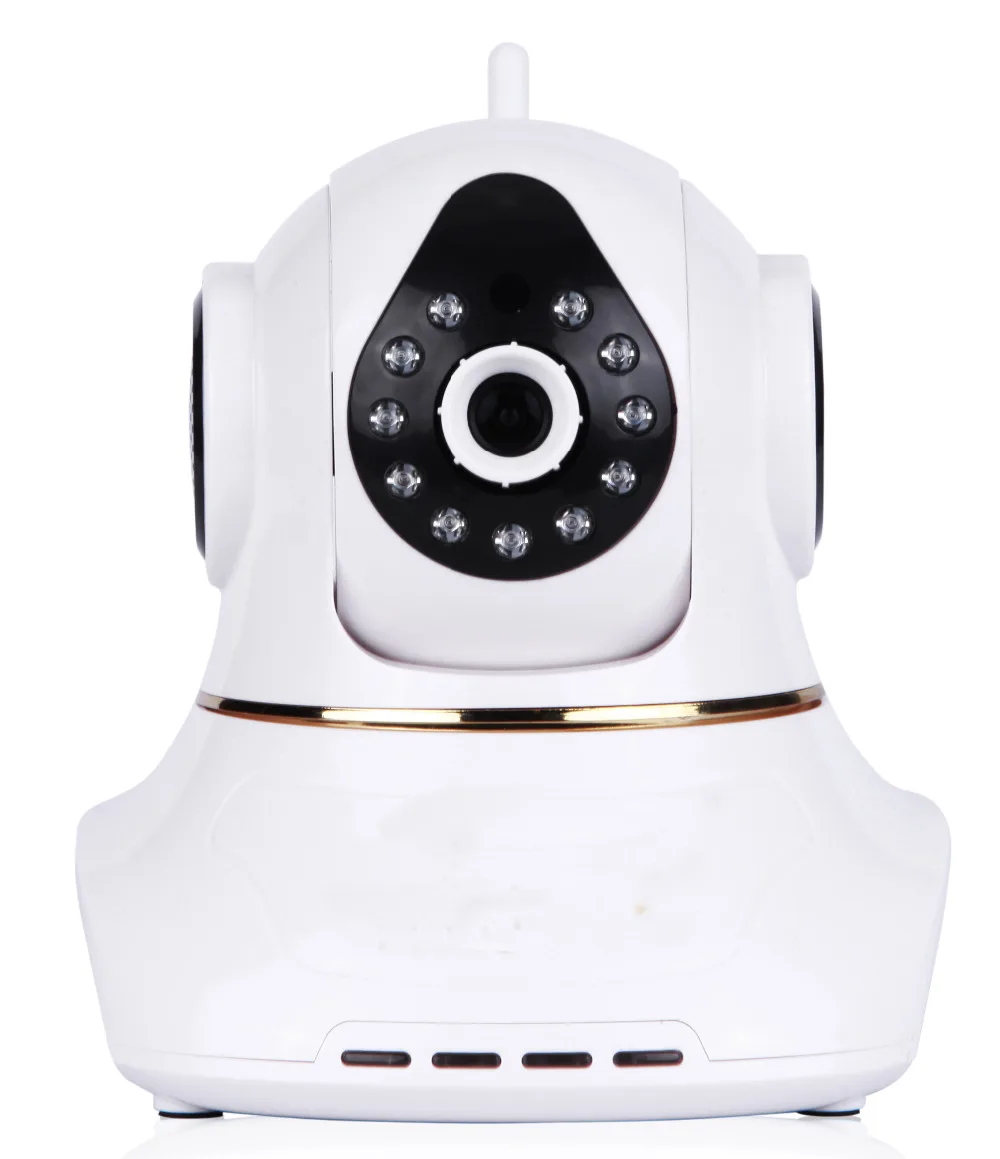

 WiFI wireless P2P IP camera




Product Description

  Features

* High resolution up to 1280×720 with 1/4″CMOS sensor

* 2.1mm wide angle lens, up to 110 degree horizontal viewing angle

* Wifi supported, high network speed, wide range and stable signal

* Mobile surveillance supported; compatible with various smart Phone operating system, such as IOS and Android

* Supporting 5 client software viewing at the same time

* Day&night vision supported with high efficiency IR light

* With microphone and loudspeaker, supporting audio two way intercom

* With G-sensor to support image auto rotation; supporting wall and mounting installaction

* Supporting motion detection and 433MHZ wireless alarm input

* Compatible with wireless door magnetic, wireless smoke sensor, and wireless gas leak sensor accessing

 Parameters

SystemMain ProcessorHi3518E
Operation SystemLINUX
VideoSensor1/4"CMOS 1MP
Image Coding StandardH.264
Video StandardPAL
Max. Resolution1280*720
Lens 2.1mm wide angle lens
Frame RateVGA@25fps
Min. Illumination0.1LUX/F1.2
AudioCoding StandardG.711A
Input45db microphone
Output1.5W loudspeaker
FunctionMotion DetectionSupport
InfraredSupport
Day&NightIR-CUT
ScreenshotSupport
StorageMicro SD, max. 64G
RecordingManual recording
Motion detection recording
Timing recording
Alarm recording
Auto AlarmSupport
Alarm Output433MHZ wireless
CompatibilityWireless door magnetic, wireless smoke sensor, and wireless gas leak sensor access supported
Voice IntercomSupport
Mobile MonitorIOS and Android
Gravity Sensor GyroscopeSupport
OtherCommunication PortRJ45 10M/100M*1
TFTF card slot*1
Wifi802.11b/g/n
Pan&TiltHorizontal and vertical control motor
Power SupplyDC 5V 2A
Power1.5W
Working Temperature0 ~+55°C
Working Humidity10 —— 90%RH
Size90*130*135mm
Weight300g








Function







Packaging & Shipping



Company Information

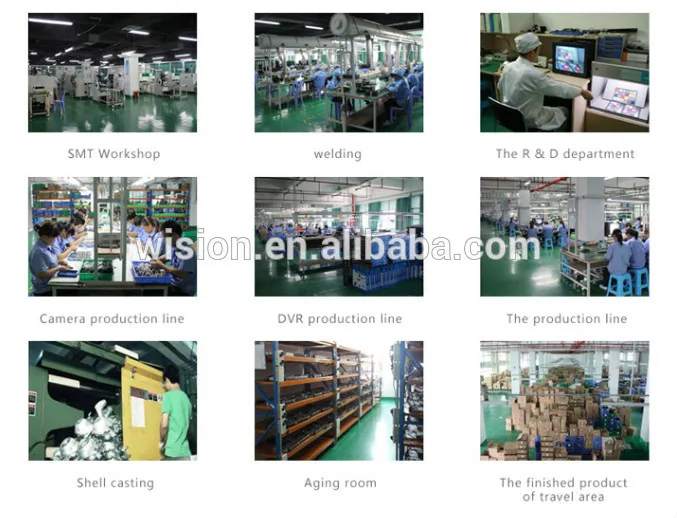

    Wision was founded in 27th April, 2005 which is a national High-tech and software enterprise authorized and approved by the Ministry of Science and Technology, and has passed the authentication of ISO9001 QMS and 3C. Our company won honorary titles and certificates such as Top 100 Chinese Security Companies, Top Ten Competitive Security Brands in China, Top Ten Innovative Enterprise, Top Ten Integrity Enterprises, and Top 10 Most Influential Security Brands in China, and got more than 100 hundred invention patents, intellectual property rights, copyrights and so on.
    As a high-tech company focus on R&D, manufacturing, sales and technical service of streaming media advanced technology, Wision has built a close partnership with numerous famous domestic and international institution and enterprises such as the Shenzhen Graduated School of Peking University in China and the Carl Zeiss from Germany for various vedio surveillance project or ODM security solution, which has got high degree of recognition and high reputation for its high quality technology and service.





What We Can Offer -



  • 1MP,1.3MP, 2MP,3MP,4MP,5MP Dome/Bullet/Box IP Cameras;
  • PTZ IP Security Cameras;
  • Pan/Tilt IP Cameras, Wireless wifi IP Camera kits;
  • 720P, 960P, 1080P AHD Cameras;
  • Analog Camera Kits;
  • 1MP, 1.3MP, 2MP, 3MP, 5MP HD-IP Camera Modules
  • DVR, NVR, Storage server, LCD Monitor, Lens etc...



Stable and Excellent Quality -
Approved with CE, FCC, Rohs, ISO9001:2008, Top 10 security bands...






Our Services

1. One year warranty
2. ODM and OEM service

3. Fast delivery
4. 7*24 professional technical support

Recommandation

Please Click Following Pictures to Know More about Our Popular Cameras.



PLS CONTACT  US  FOR DETAILS



BETTER QUANTITY=BETTER PRICE
