Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Wision
  • Model Number: WS-NH2003C/B
  • Type: IP Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • Product Name: 1080P IR IP bullet Camera
  • Model: WS-NH2003C/B
  • IR Distance: 20m
  • Lens: 3.6mm, 4/6/8mm lens optional
  • Color: White
  • Warranty: 1 Year
  • Image Sensor: 1/3"Color CMOS Sensor
  • Power Supply: DC12V 1.5A, POE
  • Keyword: Waterproof IP Camera
  • Function: Video Recording

Packaging & Delivery

Packaging Details carton box packaged
Delivery Time 1-15 days after payment received

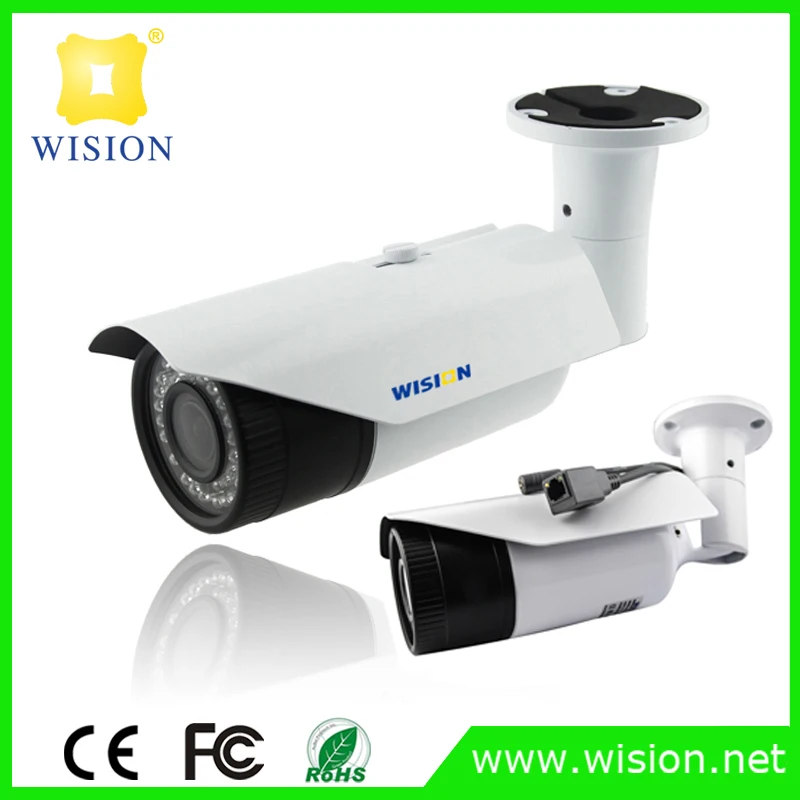

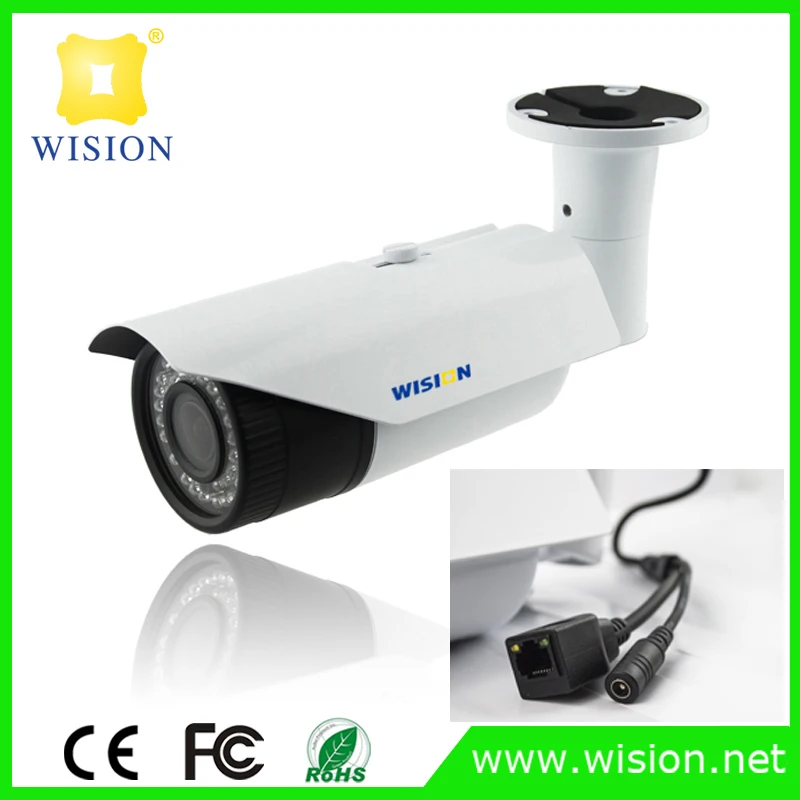

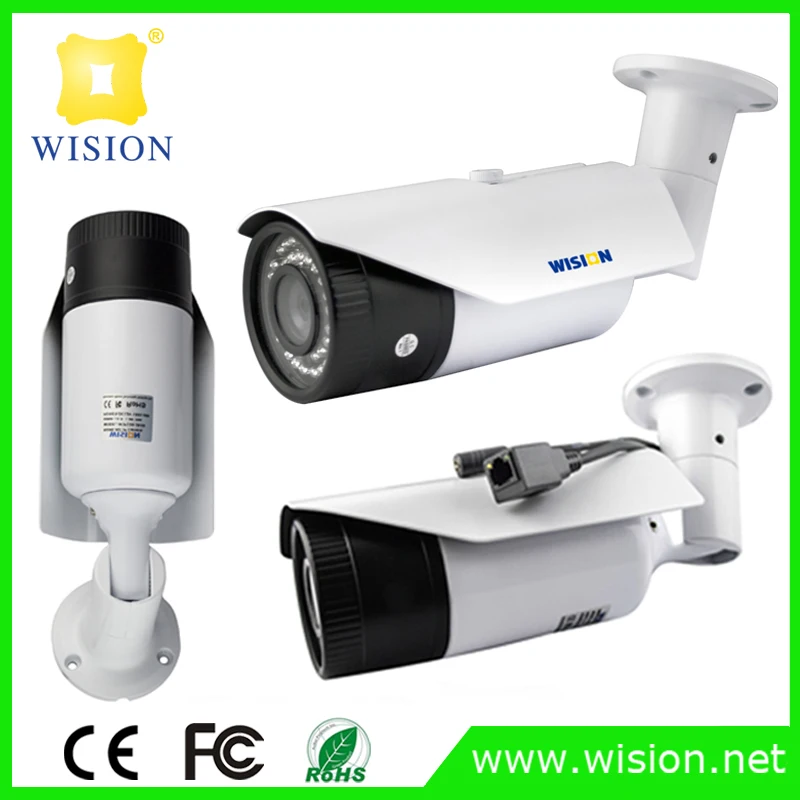

20 meters IR Bullet Camera, full HD 2 megapixel IP camera, onvif2.0, outdoor ip66 waterproof IR IP camera, security camera 1080P


* High Sensitivity,High S/N Ratio 1/3" Progressive CMOS, Hisilicon Chipset
* Max Video Output up to 2.0 Megapixel ,Resolutiion 720P ( 1920*1080)
* Built-in Long Life and Efficient Infrared Array Components
* Non-spherical Lens, Sharp Clear Image W/O Distorting
* CDS Light Control, IR-CUT Dual Filter Auto Switching and Delay Technology, Ture
  D/N Surveillance
* H.264 Compression,Tripple Streaming,Mobile Surveillance,Multi Smart Phone Operating
  System Supported
* Built-in Web Server, Standard Internet Explorer Real Time Borwsing and Configuration
  Setting Management
* Maximum Support 10 Users Browsing
* 10M/100M Adaptive Ethernet
* Network Storage, Multi Network Storage Protocol Supported
* Heartbeat,Video Lost,Motion Detection(Area,Sensitivity Selectable)Sensor Alarm
* 2 Way Audio and Broadcasting
* RS485 connector,Transparent Transmission Protocol
* Abnormal Auto Recovery, Network Interrupt Auto Connetction
* Remote Online F/W Upgrade
 ModelWS-NH2003C/B
CameraProcessorHisilicon SOC and high-speed video processor
Image Sensor1/3” 1M Pixels, Progressive CMOS
Min.LuxColor: 1Lux/F1.2; B/W:0.1Lux/F1.2 (IR OFF), 0Lux/F1.2 (IR ON)
SNR>50dB
Shutter1/5-1/50,000sec
Lens Interface3.6mm, 4mm / 6mm/8mm optional
IR distance20m
Day&NightElectronic or ICR
CompressionVideo CompressionH.264/MJPEG
Bit Rate64 Kbps-12Mbps
Audio CompressionG.711
ImageMax.Size1920 x 1080
Resolution& Frame Rate30fps(1920 x 1080), 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD ControlChannel Name, Date and time Information Superimposition supported,Location adjustable
Image SettingBLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
FunctionStorage
Intelligent AlarmMotion detection,Interruption Network, I/O Alarm
Network ProtocolHTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access ProtocolStandard ONVIF, PSIA
General FunctionsAnti-flash, Multi-stream, Password protected, OSD Technology
InterfaceAudio Input
Audio Output
Network InterfaceRJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input
Alarm Output
Video Output (analog)
GeneralSpecificationsTemperature&Humidity-10°C~50°C; 30%-90% RH
Power SupplyDC12V / 1.5A, POE optional
Power ConsumptionMax.10W
Dimension(mm)245mm(L)×100mm(W)×93mm(H)
Installment MethodsOptional
Weightabout 1950g



Certifications



Applications




Packaging & Shipping

 About Delivery:
- For sample order, we will normally ship the parts within 1-3 work days after getting the payment. For bulk order, the delivery time is 7-15 working days.
- We will normally ship via DHL/TNT/FeDEX/UPS or other international express for sample order, and ship by air or by sea for bulk order. We will arrange the shipment for you if you have no preference on the express carrier.
- Any duties, shipping cost or other charges are on import party.

 About Payment Terms:
- We accept T/T or Western Union for sample order.

 About Package:
- Color box inner and carton box outer.



Company Information

Wision was founded in 27th April, 2005, with registered capital RMB60, 000,000.00, is a professional security surveilance developer and manufacture in the global market. Wision won many honorary titles and certificates such as Outstanding Products in China Safe City Construction,Top 10 Most Influential Security Brands in China and so on. We got more than 110 hundred invention patents,intellectual property rights, copyrights. We has passed the authentication of ISO9001 QMS and 3C.


Wision security devices are always with rich function, excellent quality, perfect service and competitive price.



Wision Reception

Wision Show Room

Production Line

Company Culture & Activities



Our Services

(1) One year warranty.

(2) OEM & ODM service to meet all your requirements.
(3) Popular model will be suggested,keep our customer informed about the update of products and prices.
(4) 7*24 Technical support

(5) Fast delivery

FAQ

1. Are you manufacture?
Yes, we are manufacture and we have our own R&D team and factory.

2. How could I get the best price?
If you can become our distributor or our exclusive distributor, you can get better price.

3. Will the Camera's work anywhere in the World?
The output of ip cameras is composite video. U.S, Japan and Canada uses NTSC systemwhereas most Asia and European countries uses PAL system

4. Do you accept OEM & ODM? If yes, what's the MOQ?
Yes. We can offer OEM & ODM service for bulk order. For printing logo on the products, we require MOQ 100 pcs and logo printing fee is 100 USD/100pcs. If your order quantity is 500 pcs or more, we can offer free logo printing service.

For any queries, pls contact me directly by click the following "send"! We look forward to your inquiry!
